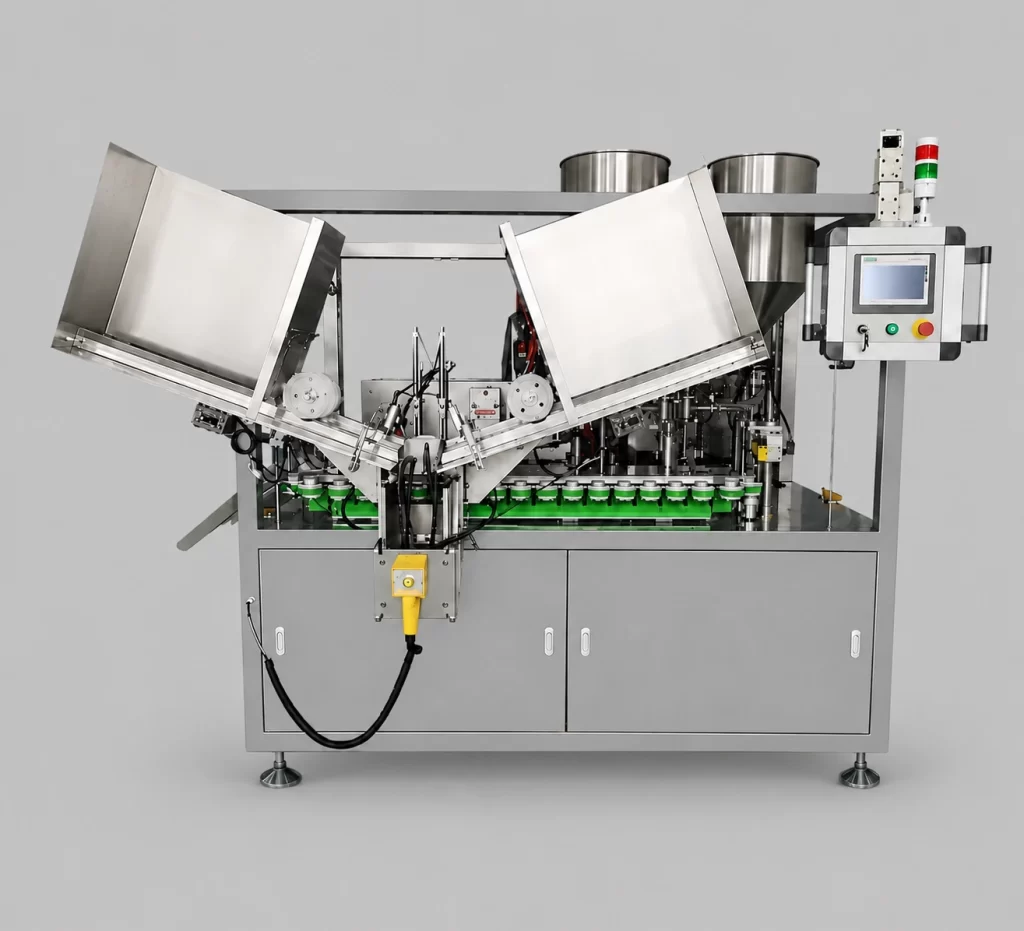

High-Speed Linear Type Tube Filling & Sealing Machine (Multiple Heads)
High-Speed Linear Type Tube Filling & Sealing Machine (Multiple Heads)
This is an industrial, heavy-duty mass production system utilizing a linear track/conveyor chain mechanism. It processes multiple tubes simultaneously (Double Head, Triple Head, or Quad Head) in a continuous or intermittent linear motion, making it ideal for large-scale FMCG or pharmaceutical plants.
Operation: Continuous/Intermittent Linear Motion with Multi-Head Parallel Processing.
Target Industries: Large-scale operations like Toothpaste, Mass Cosmetics, or Pharma gels.
| Parameter | Specification |
|---|---|
| Production Speed | 100 – 160 tubes per minute (Configurable based on 2-Head or 4-Head setup) |
| Number of Heads | 2 Heads / 4 Heads operating in parallel |
| Filling Mechanism | Multi-piston, Servo-driven filling system for ultra-precise dosing |
| Ultrasonic Sealing System | Dedicated, independent 20 kHz generators (3.0 kW or higher each) per head |
| High-Speed Registration | Multi-channel digital optical sensors for millisecond-level I-Mark detection |
| Rejection Mechanism | Smart Sorting System for defective tubes (integrated with downstream check-weighers) |
| Air Consumption Requirement | 500 – 600 Liters/min at 6.5 bar |
| PLC & Motion Control | High-end Motion Controller (Siemens / Allen-Bradley / Omron) with Multi-Axis Servo Control |
| MOC (Material of Construction) | Contact parts: SS 316L; Structure: SS 304 with polycarbonate/tempered glass safety enclosures |
