Manual Ultrasonic Tube Sealing Machine
Manual Ultrasonic Tube Sealing Machine

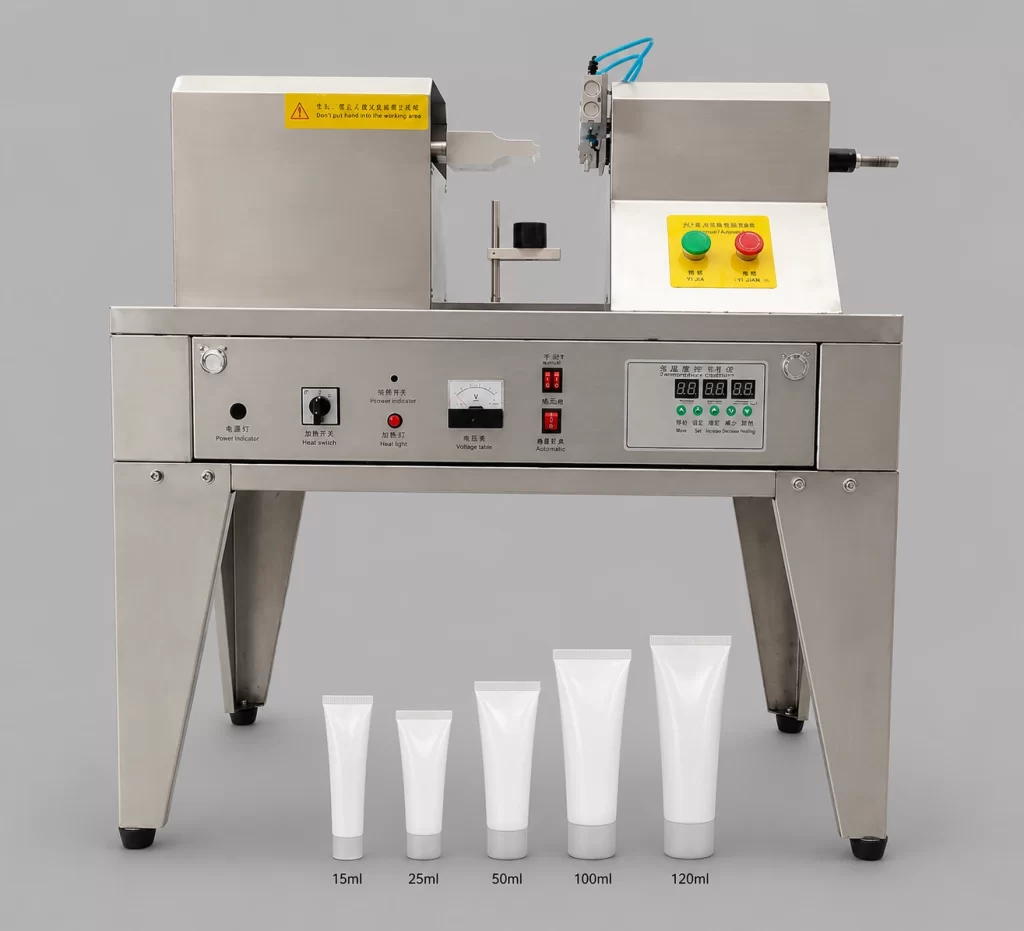

This is an entry-level, benchtop machine where tube loading and filling are done manually by an operator, while the machine handles the ultrasonic sealing, batch coding, and pneumatic trimming. It is ideal for laboratory testing, R&D, or small-batch start-up productions.
Operation: Manual Loading/Unloading + Pneumatic Foot-Switch Activation.
Suitable for: Plastic tubes, Co-extruded tubes, and Laminated tubes (Cosmetics, Pharma, Food).
| Parameter | Specification |
|---|---|
| Production Speed | 10 – 15 tubes per minute (Depends on operator efficiency) |
| Tube Diameter Range | ? 10 mm to ? 50 mm |
| Tube Length Range | 50 mm to 250 mm |
| Ultrasonic Frequency | 20 kHz |
| Ultrasonic Output Power | 1.2 kW – 2.0 kW |
| Sealing & Trimming mechanism | Integrated Pneumatic Cylinder (Simultaneous sealing and tail trimming) |
| Pneumatic Air Pressure | 0.5 – 0.7 MPa (5 – 7 bar) |
| Power Supply | Single Phase, 220V AC, 50/60 Hz |
| Machine Weight | Approx 80 – 100 kg |
